MEMBRANES

When you are installing a new commercial or residential roof – you aren’t just replacing the membrane – but it’s good to know when you do, with IB you are getting the best.

IB offers a premium line of high performance, durable PVC, commercial roofing membranes that have withstood the test of time. Select IB single ply roof membranes and assemblies are available for use over a wide range of applications. All are constructed to offer superior handling and ease of installation for the contractor. IB membranes are available with polyester scrim or fiberglass reinforcements in both smooth and fleece back format suitable for use over a broad range of substrates and insulations, designed for easy use with a variety of installation methods.

LONGEST INDUSTRY WARRANTIES

IB Roof Systems has roofs still performing after more than 30 years. IB PVC provides the longest, most durable solution in the industry and offers material, labor and material and total systems warranties.

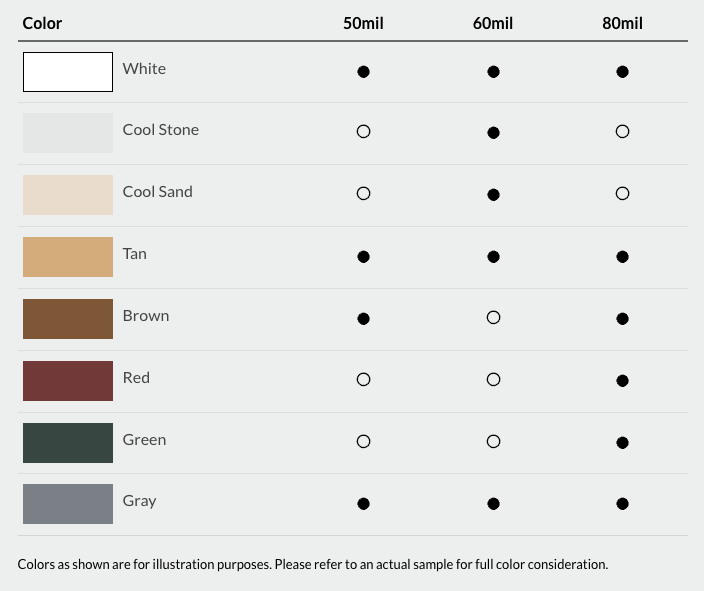

Available Colors and Thickness

The largest selection of in stock color membranes and one roll minimum order quantities.

Color 50mil 60mil 80mil
White
Cool Sand
Tan
Brown
Red
Green
Gray

Colors as shown are for illustration purposes. Please refer to an actual sample for full color consideration.

Size Does Matter – Available Membrane Roll Sizes

IB produces rolls of membrane to best serve the contractor and the ability to use and move these rolls. We offer 3’ and 6’ rolls. While even larger rolls seem to be better – try to move them. We package and ship rolls to your jobsite for safer, faster installation.

Roll Sizes 50mil 60mil 80mil
3’ x 60’
3’ x 90’
6’ x 60’
6’ x 90’

MATERIALS MADE TO SHIP. TODAY.

We can design, package and ship complete roofing solutions in many cases by the following business day to your job site.

EASIER HANDLING. FASTER. SAFER.

Standard 3’ & 6‘ rolls. Why? It’s easier to handle, ship and install. When it’s easier – it’s faster and safer.

Membrane Specifications

TECHNICAL SPECIFICATIONS | 50MIL

Weathering Surface

156% Thicker than industry standard for longer lasting roof
Solarwise™ finish maintains reflectivity and appearance
Superior UV stabilization formula resists harsh elements
Class-A fire rated to better protect buildings and content

Reinforcement

Non-wicking reinforcement eliminates edge treatments

Base Ply

Similar properties as weathering surface for stronger, more reliable seams

SURPASSING ATM STANDARDS

All test results taken from the typical properties of IB Roof Systems PVC roofing membranes. Requirements were taken from ASTM D4434.96

Weathering Surface 156% Thicker
Seam Strength 247% More Reliable
Elongation 266% More Pliable
Tearing Strength 160% More Durable
Breaking Strength 185% Stronger
DOWNLOAD SPEC SHEET

TECHNICAL SPECIFICATIONS | 60MIL

Weathering Surface

187% Thicker than industry standard for longer lasting roof
Solarwise™ finish maintains reflectivity and appearance
Superior UV stabilization formula resists harsh elements
Class-A fire rated to better protect buildings and content

Reinforcement

Non-wicking reinforcement eliminates edge treatments

Base Ply

Similar properties as weathering surface for stronger, more reliable seams

SURPASSING ATM STANDARDS

All test results taken from the typical properties of IB Roof Systems PVC roofing membranes. Requirements were taken from ASTM D4434.96

Weathering Surface 187% Thicker
Seam Strength 310% More Reliable
Elongation 266% More Pliable
Tearing Strength 162% More Durable
Breaking Strength 233% Stronger
DOWNLOAD SPEC SHEET

TECHNICAL SPECIFICATIONS | 80MIL

Weathering Surface

250% Thicker than industry standard for longer lasting roof
Solarwise™ finish maintains reflectivity and appearance
Superior UV stabilization formula resists harsh elements
Class-A fire rated to better protect buildings and content

Reinforcement

Non-wicking reinforcement eliminates edge treatments

Base Ply

Similar properties as weathering surface for stronger, more reliable seams

SURPASSING ATM STANDARDS

All test results taken from the typical properties of IB Roof Systems PVC roofing membranes. Requirements were taken from ASTM D4434.96

Weathering Surface 250% Thicker
Seam Strength 360% More Reliable
Elongation 266% More Pliable
Tearing Strength 164% More Durable
Breaking Strength 270% Stronger
DOWNLOAD SPEC SHEET

TESTED ROOFING SYSTEMS

We Are Very Cool

A white IB Roof Systems membrane can reduce your energy consumption and your rising electric bills, by reflecting up to 90% of the heat that normally enters a home through the roof. An IB Roof Systems roof will lower your home’s heat gain, and possibly pay for itself.

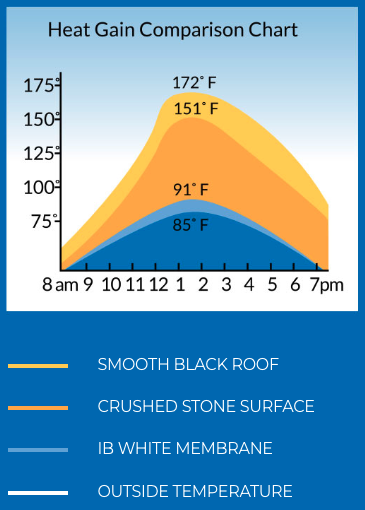

Energy Efficiency:
IB white PVC membrane complies with California Title 24, LEED® and other
energy efficiency programs. ENERGY STAR® qualified product.

Smooth black roof
Crushed stone surface
IB white membrane
Outside temperature

Why IB PVC?

With so many energy saving benefits, safety provisions and eco-friendly potions, IB Roof Systems is the Right Choice!

LIFETIME OF PROTECTION

Shielding your building from the elements is essential for your comfort and protection. IB Roof Systems provides complete system solutions coupled with the confidence of up to a 30 year Total Systems Warranty.

VALUE DRIVEN

IB Roof System’s PVC provides the best quality membrane and complete roofing solutions.

STRENGTH

IB Roof System’s products are specifically engineered for strength and our PVC roofing membranes far surpass the minimum ASTM standard (200 lbf/in. rating), having a minimum typical breaking strength of 332 lbf/in. or higher. Not all PVC is built like IB PVC.

DURABILITY

IB Roof System’s membranes use heat-welded seams, forming a permanent, watertight bond that is actually stronger than the membrane itself. Other roofing systems rely on adhesives, tapes, and caulks to seal the seams, and are inherently less durable.

FIRE RESISTANCE

IB PVC roofing membranes can be used in many UL Class A roof assemblies. These membranes show excellent resistance to spread of flame and self-extinguish when the source of the flame is removed. IB PVC roofing membranes have passed stringent fire testing standards at both UL and FM, and are approved for use in Low, Steep and Unlimited slope assemblies.

WIND RESISTANCE

With their engineered strength and heat-welded seams, IB Roof System’s PVC roofs have superior wind uplift resistance. An IB PVC roof is the best choice for many buildings located in challenging climate zones and in regions prone to strong winds.

HIGH PERFORMANCE

IB PVC membranes stand up to constant dampness and ponding water, and resist the effects of severe weather extremes. There is no exclusion in our warranty for ponding water.

ENVIRONMENTALLY FRIENDLY

IB PVC’s high solar reflectivity reduces energy waste, lowering monthly heating and cooling costs. Additionally, it is one of the few building materials that can be fully recycled into new roofing products, even after decades of service life.
